Denko Emergency Exit Sign
Description
Features and Application

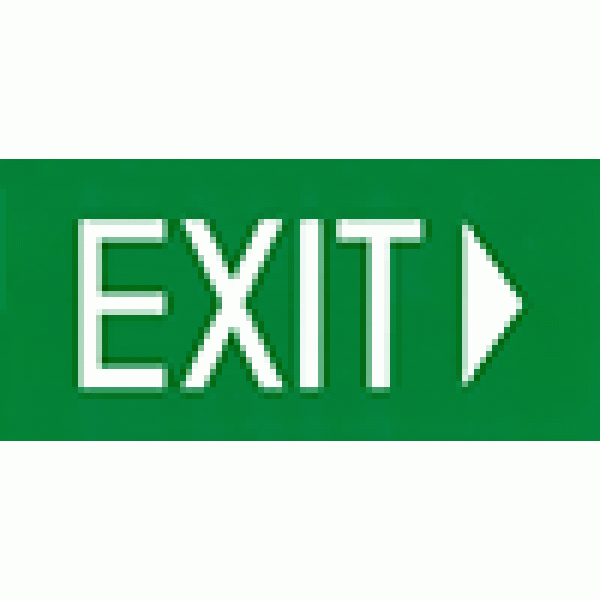

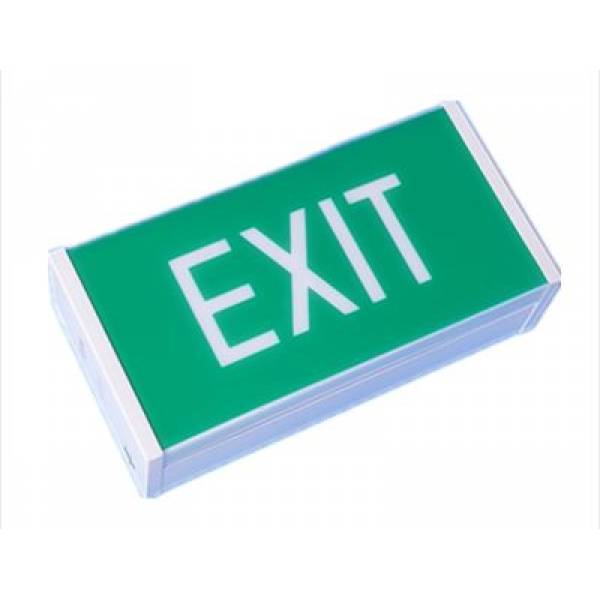

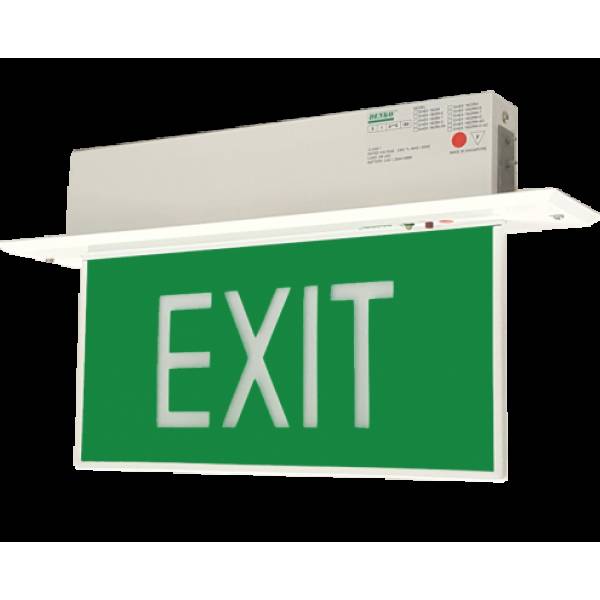

New slim housing recessed LED emergency exit signs with option for ‘Exit’ or ‘Running Man’ signage.
• Samsung LED lamps provide high efficiency, durability and
low energy consumption.
• LED lamps provide high efficiency, durability and low energy
consumption.
• Designed for easy installation and maintenance.
Technical Specifications
| Mode of Operation | Maintained |
| Lamp | Samsung 2W High flux white LED |
| Operating Temperature | ta 0°C ~ 50°C |
| Mains Supply | 230V AC 50Hz/60Hz |
| Power Consumption | < 4W |
| Battery | High temperature NICD battery |
| Charger | Fully automatic |
| Charging Monitor | Ø 5mm Green LED |
| Recharge Period | 24 hrs |
| Testing Facility | Test-switch for independent testing |
| Emergency Duration | 3 hrs |
| Safety Feature | Low-voltage cut-off to prevent over-discharge of battery |
| Construction | Electro-galvanised steel casing with epoxy powder coating |
| Weight (Nett/Gross) | 1.5 kg / 1.7 kg |
| Compliance | SS 563-1:2010 SS 563-2:2010/A1:2013 SS IEC 60598-2-22:2016 |
| Installation | Recessed mounting |
| Cable Entry | 3 x 20mm Ø knockout hole |
| IP Rating | IP 20 |
| Legend | White text/graphical symbol over ISO green background |
| Warranty | 1 year |
Click the "Download" icon for the Catalogue
OUT OF STOCK!
This product is out of stock, submit your email and we will notify once it restock.
