Taps & Dies

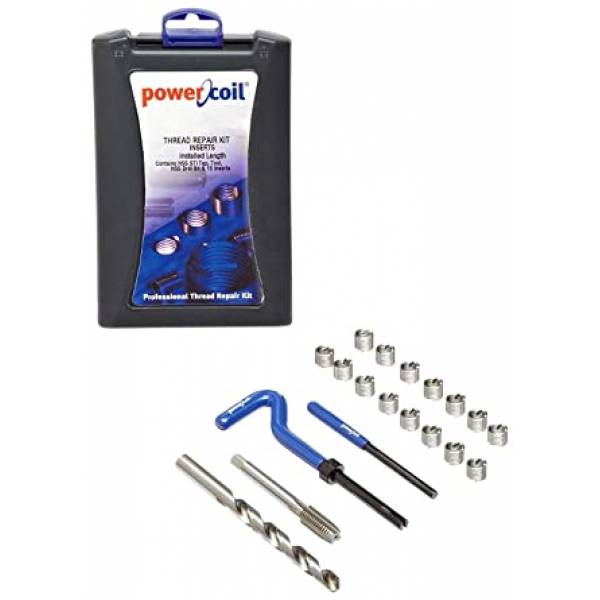

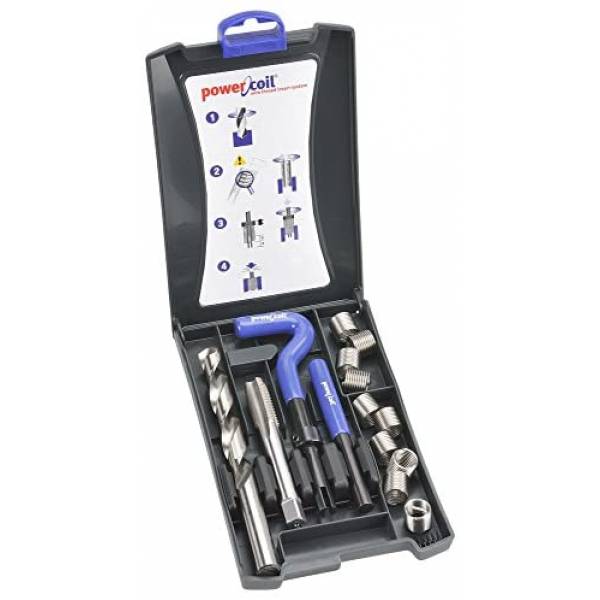

Powercoil Thread Repair Kit Set
- $45.00
Description
- Thread repair kit containing drill, tap, installation tool, tang break tool, quantity of inserts and instructions
- Used to repair damaged or worn out threads
- Used to create new stronger threads in original equipment
- Provide a permanent, corrosion and wear resistant internal thread
- Powercoil kits contain the wire thread inserts, tap, installation tool
| Part no. | Thread Diameter mm | Pitch mm | Installed Length | Installed Length mm | Drill Diameter mm | Insert Qty |
|---|---|---|---|---|---|---|
| 3520-3.00K | 3 | 0.5 | 1.5D | 4.5 | 3.2 | 20 |
| 3520-4.00K | 4 | 0.7 | 1.5D | 6 | 4.2 | 20 |
| 3520-5.00K | 5 | 0.8 | 1.5D | 7.5 | 5.2 | 20 |
| 3520-6.00K | 6 | 1 | 1.5D | 9 | 6.3 | 20 |
| 3520-8.00K | 8 | 1.25 | 1.5D | 12 | 8.3 | 20 |
| 3520-10.00K | 10 | 1.5 | 1.5D | 15 | 10.4 | 15 |
| 3520-12.00K | 12 | 1.75 | 1.5D | 18 | 12.4 | 10 |
