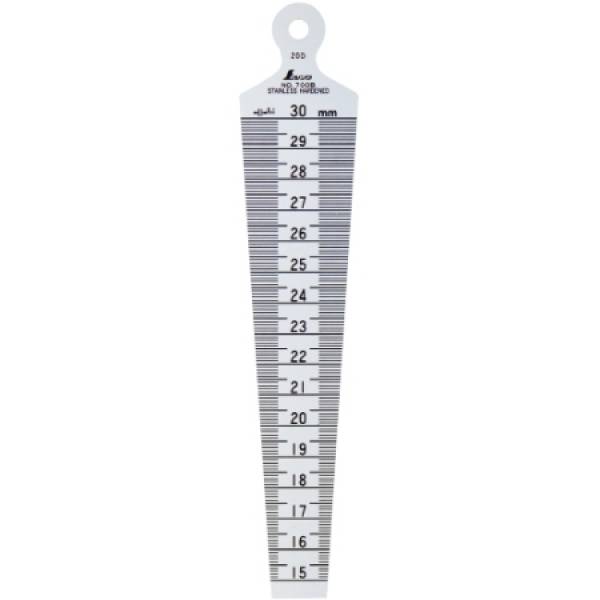

Shinwa Taper Gauge No.700B

Measurements can be made simply by inserting them into gaps, tubes and holes.
Gauge used to measure clearance, inner diameter and hole diameter * Do not use in places where there is a risk of contact with electricity.
[Products with proofs cannot be canceled after ordering] * Products with proofs and traceability diagrams can only be ordered on the web.
* Applicable documents are included only for products that include (with JCSS calibration), (with general calibration / traceability system diagram) and (with calibration / traceability system diagram) in the part number.

Dimensions (mm) - 154×31×1.2

Measuring Range (mm) - 15～30

Mass (g) - 29

Hardness - HV400 or more

Material - Stainless steel

Scale Accuracy (mm) - ± 0.05 with respect to the measurement range
