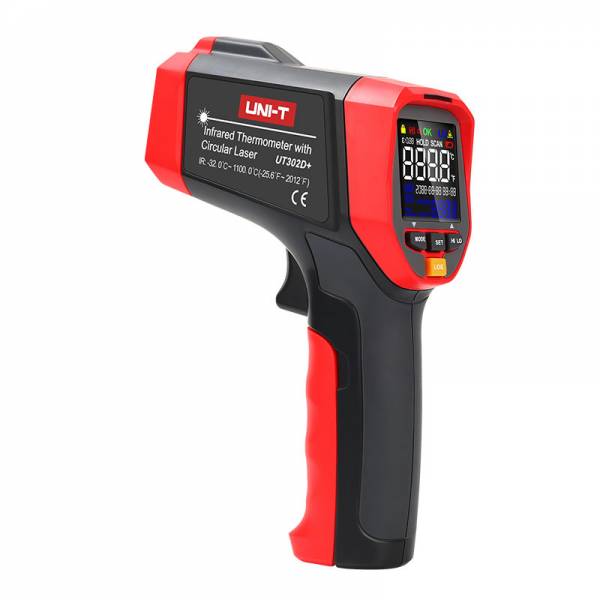

UNI-T Infrared Thermometer UT302D+
Description
UT302D+ Infrared thermometer
1. 20:1 D:S ratio
2. Adjustable emissivity 0.1~1.0
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
| Specifications | UT302D+ | ||
| Temperature range | -32℃~1100℃ | ||
| -25.6℉~2012℉ | |||
| Accuracy | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) | ||
| ≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉) | |||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | ||
| D:S ratio | 20:1 | ||
| Response time | 250ms | ||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | ||
| Spectral response | 8um~14um | ||
| Laser power | < 1mW | ||
| Features | |||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| LCD display | Color EBTN | ||
| High/low LED alarm | √ | ||
| High/low audible alarm | √ | ||
| Data hold/Lock measurement | √ | ||
| ℃/℉ selection | √ | ||
| MAX/MIN/AVG/DIFF mode | √ | ||
| Data storage with date and time | 99 | ||
| Scheduled measurement | √ | ||
| Backlight | √ | ||
| Operating temperature | 0℃~50℃ (32℉~122℉) | ||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | ||
| Operating humidity | <90%RH (non-condensing) | ||
| Drop test | 1m | ||
| Tripod mounting hole | √ | ||
| General Characterisitics | |||
| Power | 9V battery | ||
| Display | 35mm x 35mm | ||
| Product color | Red and grey | ||
| Product net weight | 310g | ||
| Product size | 172mm x 113.5mm x 53mm | ||
| Standard accessories | Battery, carrying bag | ||
| Standard individual packing | Gift box, blister, English manual | ||
